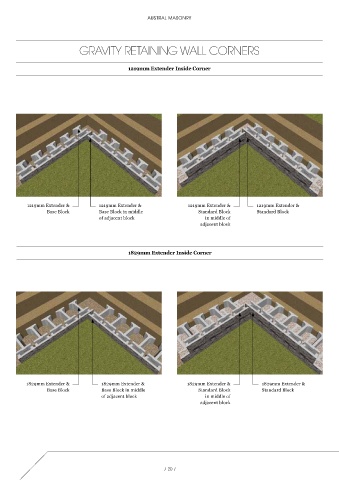

GRAVITY RETAINING WALL CORNERS

1219mm Extender Inside Corner

1219mm Extender & 1219mm Extender & 1219mm Extender & 1219mm Extender &
Base Block Base Block in middle Standard Block Standard Block
of adjacent block in middle of
adjacent block

1829mm Extender Inside Corner

1829mm Extender & 1829mm Extender & 1829mm Extender & 1829mm Extender &
Base Block Base Block in middle Standard Block Standard Block
of adjacent block in middle of
adjacent block
